On-Site Nitrogen Generator for Reliable In-House Nitrogen Production

Produce high-purity nitrogen on-site with our industrial nitrogen generators. Eliminate cylinder shortages, cut delivery costs, and reduce your carbon footprint with continuous, on-demand nitrogen production.

Why Choose an On-Site Nitrogen Generator?

• Uninterrupted Supply: Say goodbye to cylinder back-orders and emergency runs. Generate nitrogen whenever you need it.

• Cost Savings: Eliminate rental fees, delivery charges, and price fluctuations associated with bulk cylinders.

• Environmental Sustainability: Reduce CO₂ emissions by cutting out long-haul transport of gas cylinders.

• High-Purity Nitrogen: Customizable purity levels up to 99.999% to suit applications from food packaging to electronics manufacturing.

Nitrogen Generator Technology

The production of nitrogen using an INMATEC nitrogen generator can be realised with two technologies. Both technologies separate the nitrogen molecules from the oxygen molecules in the ambient air.

Pressure Swing Adsorption (PSA) Nitrogen Generation

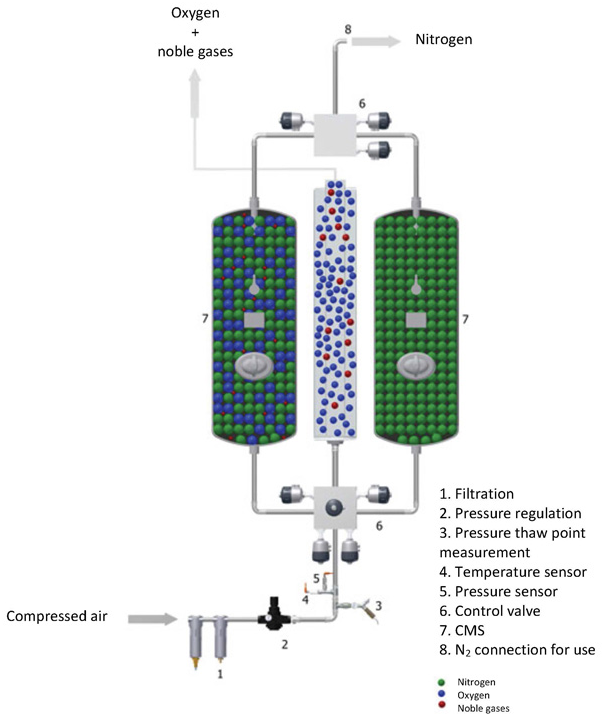

Pressure Swing Adsorption (PSA) uses the principle of selective adsorption to produce high-purity nitrogen on-site. In this process, clean, compressed air is fed alternately into two vessels packed with carbon molecular sieves. Ambient air—comprising roughly 21 % oxygen, 78 % nitrogen, and 0.04 % carbon dioxide—passes through the sieves, which trap oxygen and carbon dioxide molecules while allowing nitrogen to pass through into the product storage tank.

The result is ultra-dry nitrogen, with flow rates ranging from 0.50 to 10,000 m³ per hour. PSA systems can consistently deliver nitrogen at purities up to 6.0 (99.9999 % nitrogen, just 1 ppm residual oxygen), making them ideal for applications in food packaging, electronics manufacturing, laboratory use, and more.

Pressure Swing Adsorption (PSA) uses the principle of selective adsorption to produce high-purity nitrogen on-site. In this process, clean, compressed air is fed alternately into two vessels packed with carbon molecular sieves. Ambient air—comprising roughly 21 % oxygen, 78 % nitrogen, and 0.04 % carbon dioxide—passes through the sieves, which trap oxygen and carbon dioxide molecules while allowing nitrogen to pass through into the product storage tank.

The result is ultra-dry nitrogen, with flow rates ranging from 0.50 to 10,000 m³ per hour. PSA systems can consistently deliver nitrogen at purities up to 6.0 (99.9999 % nitrogen, just 1 ppm residual oxygen), making them ideal for applications in food packaging, electronics manufacturing, laboratory use, and more.

Membrane Technology Nitrogen Generation

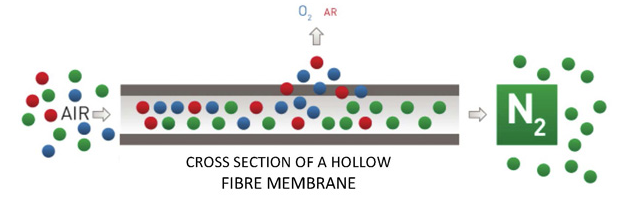

Membrane-based nitrogen generators at INMATEC utilize hollow-fibre membranes to separate nitrogen from air. Compressed ambient air is driven through these fine fibres, where gases diffuse at rates determined by their molecular characteristics—water vapor, oxygen, noble gases, and carbon dioxide permeate the membrane more quickly, while nitrogen passes through more slowly into the product line. By adjusting operating pressure and feed air quality, the system achieves the desired nitrogen purity.

INMATEC’s membrane solutions deliver between 0.14 Nm³/h and 10,000 Nm³/h of nitrogen, with achievable purities up to 2.5 (99.5% nitrogen with 5,000 ppm residual oxygen), making them ideal for a wide range of industrial applications.

Common Applications

Industrial and laboratory uses include:

• Food packaging and preservation
• Chemical blanketing
• Electronics manufacturing
• Metal fabrication and laser cutting
• Laboratory inerting

Choosing the Right Generator

Evaluate:

• Required flow rate and purity
• Available compressed air quality and pressure
• Integration with existing control systems

For expert sizing, consult our selection tool or contact us for tailored recommendations.

INMATEC Nitrogen Generators

PSA Nitrogen Generators

• IMT PN OnGo
  Your straightforward entry into on-site nitrogen production.

  • Output: 0.40 – 84.00 Nm³/h

  • Purity: 95 % – 99.999 % (5.0) / 10 ppm

• IMT PN OnTouch
  Direct access to high-purity and ultra-pure nitrogen.

  • Output: 0.40 – 84.00 Nm³/h

  • Purity: 95 % – 99.9999 % (6.0) / 1 ppm

• IMT PNC OnGo
  Efficient, cost-effective nitrogen generation.

  • Output: 7.30 – 1 424.00 Nm³/h

  • Purity: 95 % – 99.999 % (5.0) / 10 ppm

• IMT PNC
  Ultra-pure nitrogen with optimal energy efficiency.

  • Output: 7.30 – 4 111.00 Nm³/h

  • Purity: 95 % – 99.999 % (5.0) / 10 ppm

• IMT Nkat
  Achieve up to 99.9999 % nitrogen with an air factor of 2.9.

  • Output: 0.50 – 10 000.00 Nm³/h

  • Purity: 99.5 % – 99.9999 % (6.0) / 1 ppm

• IMT PN EcoTube
  Modular design for scalable, efficient nitrogen supply.

  • Output: 0.70 – 47.20 Nm³/h

  • Purity: 97 % – 99.999 % (5.0) / 10 ppm

• IMT PN EcoTube OnGo
  Energy-smart entry into nitrogen generation.

  • Output: 0.70 – 47.20 Nm³/h

  • Purity: 97 % – 99.999 % (5.0) / 10 ppm

Membrane Nitrogen Generators

• IMT SN
  Tailor-made nitrogen via proven hollow-fibre membrane technology.

  • Output: 0.14 – 12.30 Nm³/h

  • Purity: 95 % – 99.5 %

• IMT MN
  Continuous nitrogen production with robust membrane separation.

  • Output: 4.70 – 160.00 Nm³/h

  • Purity: 95 % – 99.5 %

• IMT LNX
  High-volume flows for large-scale nitrogen demands.

  • Output: 54.00 – 10 000.00 Nm³/h

  • Purity: 95 % – 99 %

Ready for on-site nitrogen production?

Contact us to configure your INMATEC PSA generator today.
